Nut-Fast

The Nut-Fast Rivet Nuts are blind threaded inserts provide load bearing threads in thin sheet materials.

Features and Benefits

• For very thin sheet materials

• Access needed from only one side of the application, for high speed assembly

• Provides a female thread in application

• Air and water isolated

• Double diameter body and lead-in chamfer provide easy insertion into hole (For knurled rivet nuts)

• Can be installed in pre-coated or post painted applications without damaging the surface

• Various platings available to increase the corrosion resistance

• Low profile head allows near flush fit to application and clamps two or more sheets of material together, within the grip range

• Large flange head provides a load bearing surface and reinforces the hole to prevent push-out. Can be used as a spacer and can be supplied with an under-head seal

• Closed end prevents the ingress of dirt and fluids into thread and electrical circuits

• Can be used with hand tools, pneumatic tools and fully automated machines to suit a wide range of assembly methods

• Hexagonal section and bore improves torque-to-turn by up to 200% in sheet metal compared to round body inserts.

(For hexagonal rivet nuts closed types)

• Superior pull-out performance (For hexagonal rivet nuts closed types)



Usage Area

• Automotive

• Electrical engineering

• Electronic components

• Sheet metal

• Domestic appliances

• General light fabrication

• Automotive chassis components

• Switchgear cabinets

• Thermal applications

  • Thin Head Knurled Rivet Nuts Steel

    Material

    Low Carbon Steel 1008/1010

    Ø Thin Head Knurled Rivet Nuts
    M3X0,5 TF1033-03-101XXN
    M4X0,7 TF1033-04-101XXN
    M5X0,8 TF1033-05-101XXN
    M6X1,0 TF1033-06-101XXN
    M8X1,25 TF1033-08-101XXN
    M10X1,5 TF1033-10-101XXN

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

  • Flat Head Knurled Rivet Nuts Steel

    Material

    Low Carbon Steel 1008/1010

    Ø Flat Head Knurled Rivet Nuts
    M3X0,5 TF1133-03-101XXN
    M4X0,7 TF1133-04-101XXN
    M5X0,8 TF1133-05-101XXN
    M6X1,0 TF1133-06-101XXN
    M8X1,25 TF1133-08-101XXN
    M10X1,50 TF1133-10-101XXN
    M12X1,75 TF1133-12-101XXN

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

  • Thin Head Knurled Rivets Nuts Closed Steel

    Material

    Low Carbon Steel 1008/1010

    Ø Thin Head Knurled Rivet Nuts Closed
    M4X0,7 TF1033-04-101XXN-C
    M5X0,8 TF1033-05-101XXN-C
    M6X1,25 TF1033-06-101XXN-C

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

  • Flat Head Knurled Rivet Nuts Closed Steel

    Material

    Low Carbon Steel 1008/1010

    Ø Flat Head Knurled Rivet Nuts Closed
    M4X0,7 TF1133-04-101XXN-C
    M5X0,8 TF1133-05-101XXN-C
    M6X1,0 TF1133-06-101XXN-C
    M8X1,25 TF1133-08-101XXN-C

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

  • Thin Head Hexagonal Rivet Nuts Steel

    Material

    Low Carbon Steel 1008/1010

    Ø Thin Head Hexagonal Rivet Nuts
    M4X0,7 TF1044-04-101XXN
    M5X0,8 TF1044-05-101XXN
    M6X1,0 TF1044-06-101XXN
    M8X1,25 TF1044-08-101XXN
    M10X1,5 TF1044-10-101XXN

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

  • Flat Head Hexagonal Rivet Nuts Steel

    Material

    Low Carbon Steel 1008/1010

    Ø Flat Head Hexagonal Rivet Nuts
    M4X0,47 TF1144-04-101XXN
    M5X0,8 TF1144-05-101XXN
    M6X1,0 TF1144-06-101XXN
    M8X1,25 TF1144-08-101XXN
    M10X1,5 TF1144-10-101XXN
    M12X1,75 TF1144-12-101XXN

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

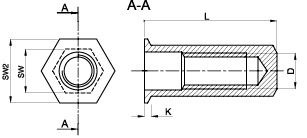

  • Thin Head Hexagonal Rivet Nuts Closed Steel

    Material

    Low Carbon Steel 1008

    Ø Thin Head Hexagonal Rivet Nuts Closed
    M4X0,47 TF1044-04-101XX-C
    M5X0,8 TF1044-05-101XX-C
    M6X1,0 TF1044-06-101XX-C
    M8X1,25 TF1044-08-101XX-C

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

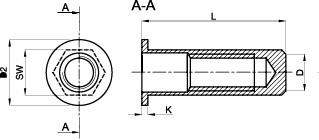

  • Flat Head Hexagonal Rivet Nuts Closed Steel

    Material

    Low Carbon Steel 1008

    Ø Flat Head Hexagonal Rivet Nuts Closed
    M4X0,7 TF1144-04-101XX-C
    M5X0,8 TF1144-05-101XX-C
    M6X1,0 TF1144-06-101XX-C
    M8X1,25 TF1144-08-101XX-C

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

  • Thin Head Half Hexagonal Rivet Nuts Steel

    Material

    Low Carbon Steel 1008/1010

    Ø Thin Head Half Hexagonal Rivet Nuts
    M3X0,5 TF1055-03-101XXN
    M4X0,7 TF1055-04-101XXN
    M5X0,8 TF1055-05-101XXN
    M6X1,0 TF1055-06-101XXN
    M8X1,25 TF1055-08-101XXN
    M10X1,5 TF1055-10-101XXN

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

  • Flat Head Half Hexagonal Rivet Nuts Steel

    Material

    Low Carbon Steel 1008/1010

    Ø Flat Head Half Hexagonal Rivet Nuts
    M4X0,7 TF1155-04-101XXN
    M5X0,8 TF1155-05-101XXN
    M6X1,0 TF1155-06-101XXN
    M8X1,25 TF1155-08-101XXN
    M10X1,5 TF1155-10-101XXN
    M12X1,75 TF1155-12-101XXN

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

  • Thin Head Knurled Rivet Nuts Stainless Steel

    Material

    Stainless Steel

    Ø Flat Head Half Hexagonal Rivet Nuts
    M4X0,7 TF1155-04-101XXN
    M5X0,8 TF1155-05-101XXN
    M6X1,0 TF1155-06-101XXN
    M8X1,25 TF1155-08-101XXN
    M10X1,5 TF1155-10-101XXN
    M12X1,75 TF1155-12-101XXN

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

  • Flat Head Knurled Rivet Nuts Stainless Steel

    Material

    Stainless Steel

    Ø Flat Head Half Hexagonal Rivet Nuts
    M4X0,7 TF1155-04-101XXN
    M5X0,8 TF1155-05-101XXN
    M6X1,0 TF1155-06-101XXN
    M8X1,25 TF1155-08-101XXN
    M10X1,5 TF1155-10-101XXN
    M12X1,75 TF1155-12-101XXN

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

  • Thin Head Half Hexagonal Rivet Nuts Stainless Steel

    Material

    Stainless Steel

    Ø Thin Head Half Hexagonal Rivet Nuts
    M3X0,5 TF1055-03-301XXN
    M4X0,7 TF1055-04-301XXN
    M5X0,8 TF1055-05-301XXN
    M6X1,0 TF1055-06-301XXN
    M8X1,25 TF1055-08-301XXN
    M10X1,5 TF1055-10-301XXN

    Content on this page requires a newer version of Adobe Flash Player.

    Get Adobe Flash player

  • Flat Head Half Hexagonal Rivet Nuts Stainless Steel

    Material

    Stainless Steel

    Ø Flat Head Half Hexagonal Rivet Nuts
    M4X0,7 TF1155-04-301XXN
    M5X0,8 TF1155-05-301XXN
    M6X1,0 TF1155-06-301XXN
    M8X1,25 TF1155-08-301XXN
    M10X1,50 TF1155-10-301XXN
    M12X1,75 TF1155-12-301XXN
