Rivet Tools

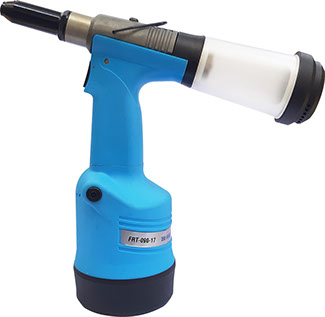

High professional hydraulic/pneumatic blind riveting tool
FRT-090-17
| PART # | FRT-090-17 |
|---|---|
| CAPACITY Al, St, SS | Ø 2,4 – 4,8 mm |
| STROKE | 17 mm |
| PRESSURE REQUIRED | 5 – 7 Bar |
| TRACTION POWER | 9 kN |
| DIMENSIONS | 276 mm x 362 mm x 119 mm |
| WEIGHT | 1, 45 kg |
| EQUIPMENT | Nose pieces Ø 2,4 – 4,8 mm |
Nut Rivet Tools

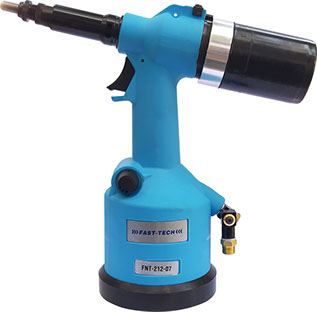

High professional hydraulic/pneumatic nut riveting tool.
FNT-212-07
| PART # | FNT-212-07 |
|---|---|
| CAPACITY Al, St, SS | M3 – M12 |
| STROKE | 26 mm |
| PRESSURE REQUIRED | 5 – 7 Bar |
| TRACTION POWER | 9 kN |
| DIMENSIONS | 276 mm x 362 mm x 119 mm |
| WEIGHT | 1, 45 kg |
| EQUIPMENT | Nose pieces Ø 2,4 – 4,8 mm |
Blind Rivets Tools

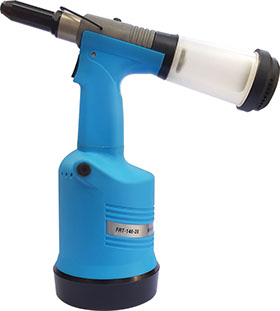

High professional hydraulic/pneumatic blind riveting tool
FRT-146-28
| PART # | FRT-146-28 |
|---|---|
| CAPACITY Al, St, SS | Ø 4,8 – 6,4 mm, Al, St, Rv |
| STROKE | 28 mm |
| PRESSURE REQUIRED | 5 – 7 Bar |
| TRACTION POWER | (6 bar) 14,6 kN |
| DIMENSIONS | 276 mm x 372 mm x 134 mm |
| WEIGHT | 1,64 kg |
| EQUIPMENT | Nose pieces Ø 4,8 – 6,4 mm |
Battery Blind Rivet Tools

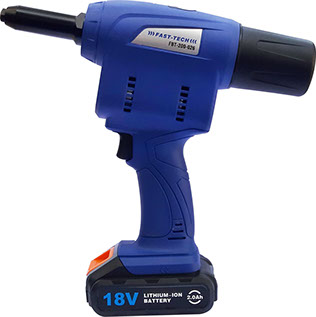

High professional battery blind riveting tool
FBT-200-026
| PART # | FBT-200-026 |
|---|---|
| CAPACITY Al, St, SS | Ø 4,0 – 6,4 mm |
| STROKE | 26 mm |
| VOLT | 18 V 2 A |
| TRACTION POWER | 20 kN |
| DIMENSIONS | 272 mm x 275 mm x 120 mm |
| WEIGHT | 1,7 kg |
| EQUIPMENT | Nose pieces Ø 4,0 – 6,4 mm |
